Description
Demo Board Type: Raspberry pi 2 b
Origin: Mainland China
Certification: CE
Choice: yes
semi_Choice: yes

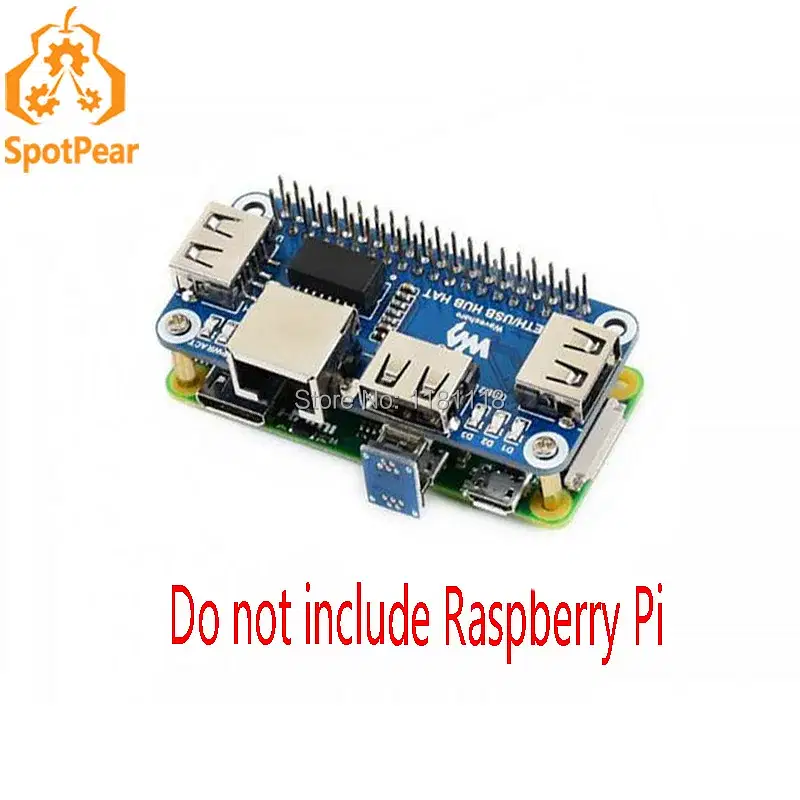

Do not include Raspberry Pi Zero

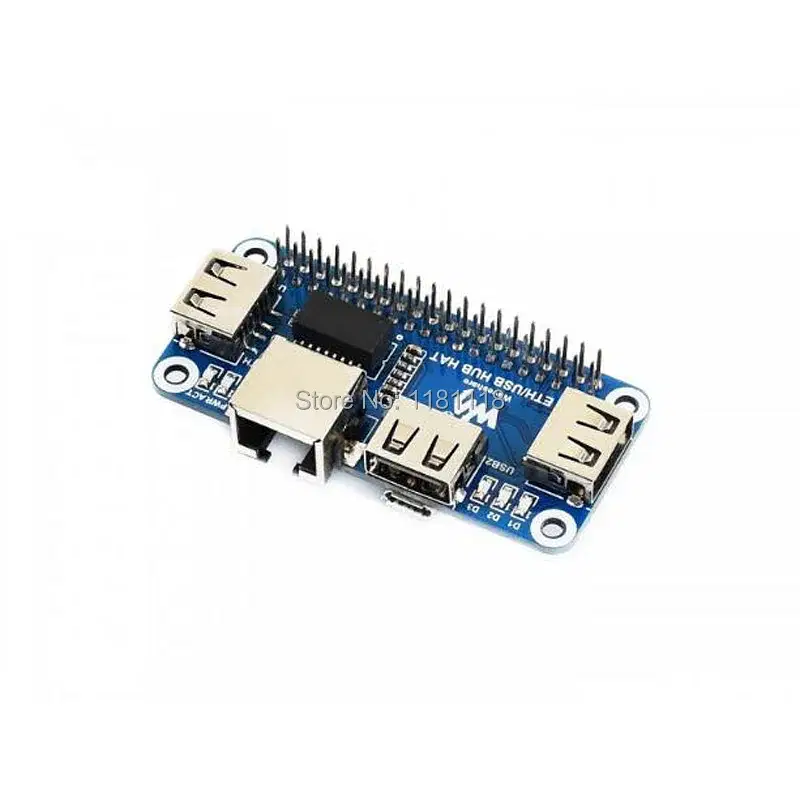

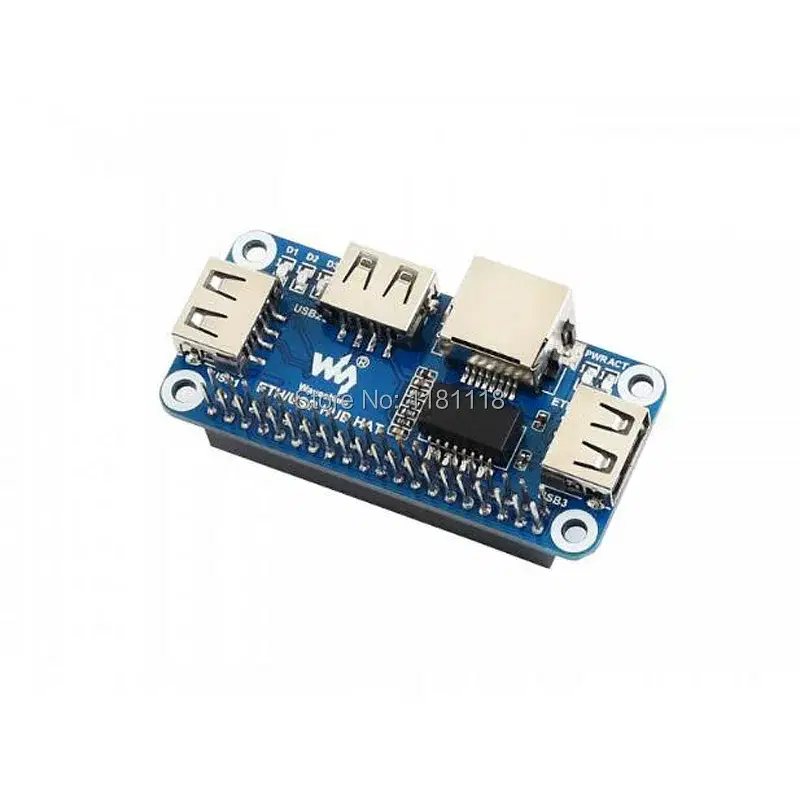

Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports
This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
-
3x USB ports, compatible with USB2.0/1.1
-
1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
-
Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB por
-
Raspberry Pi GPIO interface:Â for connecting Raspberry Pi
-
USB extended ports:Â USB1~USB3
-
RJ45 port:Â 10/100M Ethernet interface
-

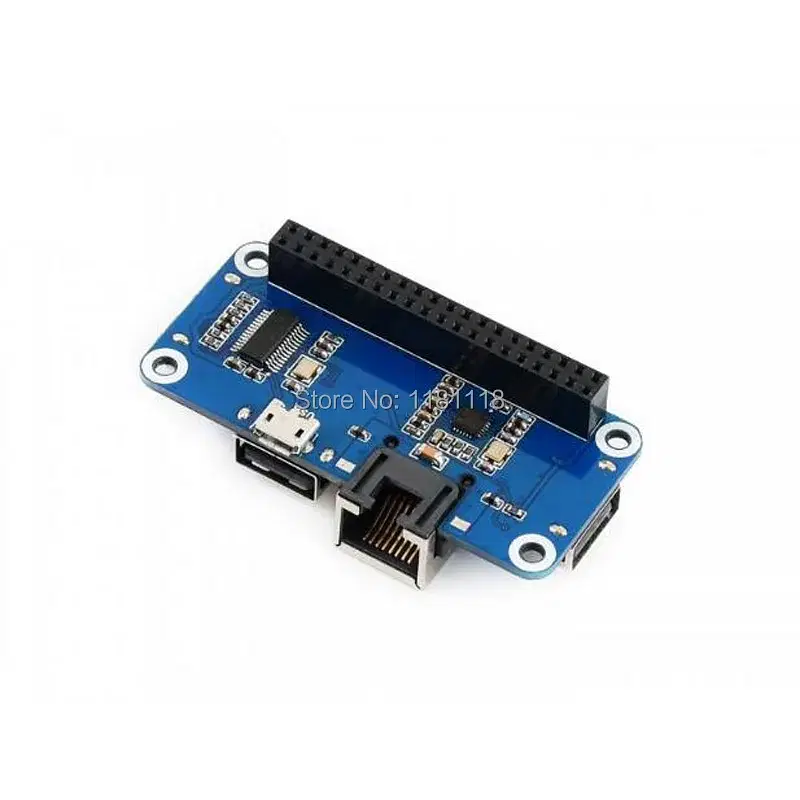

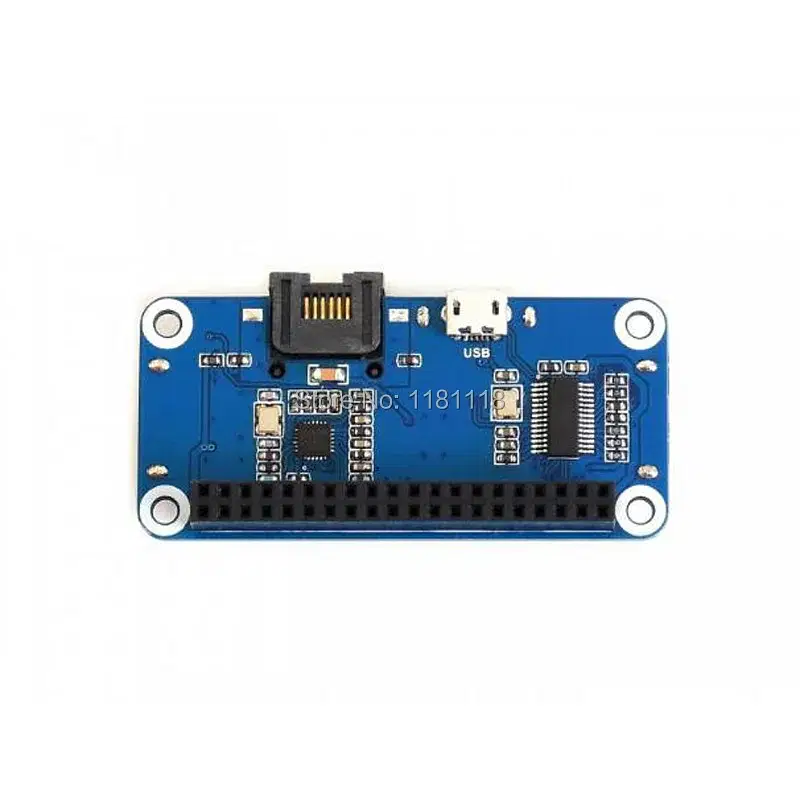

USB HUB interface (bottom):Â for connecting the HUB to the Raspberry Pi USB port
-
Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
-
Raspberry Pi B+ / 2B / 3B / 3B+: connected via  extra Micro USB cable(Our pacakge do not include, buy it alone)
-
-
TS8121A:Â Ethernet wave filter
-
RTL8152B:Â 10/100M Ethernet chip
-
FE1.1S:Â USB HUB chip
-

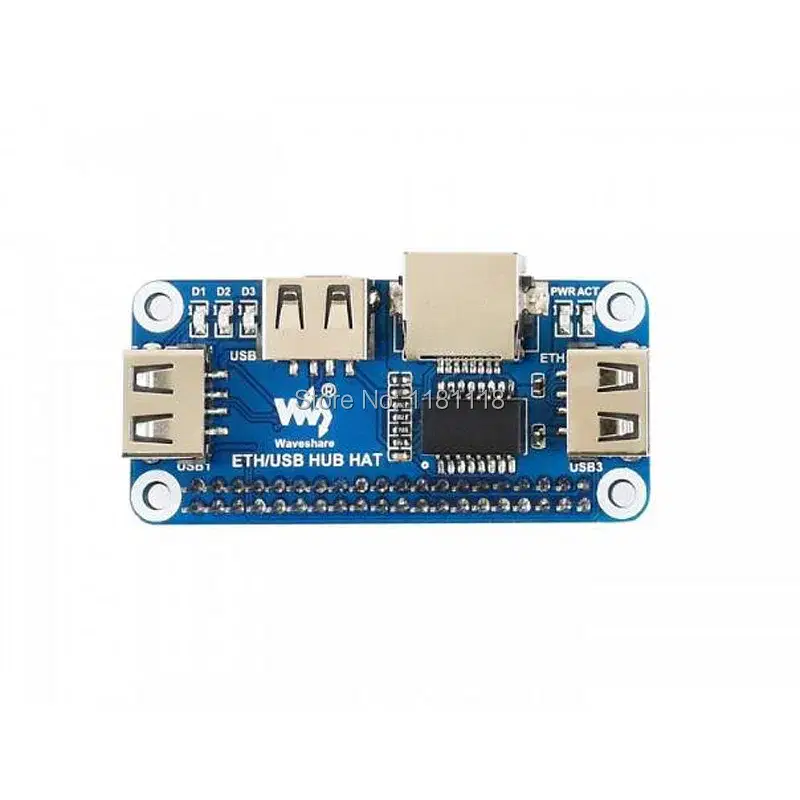

LED indicators:
-
PWR: power indicator
-
ACT: Ethernet indicator
-
D1~D3: dedicated indicator for USB1~USB3 respectively
-
-
Operating voltage: 5V
-
Dimension: 65mm × 30mm
-
Mounting hole size: 3.0mm
-
ETH/USB HUB HAT x1
-
Micro USB connector x1
-
Micro USB cable x1
-
RPi screws pack (2pcs) x1
Additional information
| brand | Waveshare |
|---|---|
| MPN | 2255799836173331 |
| CONDITION | New |
