SSD Capacity: 256GB, Ships From: CHINA – BR M.2 SSD NGFF 128GB 256GB 512gb 1TB 2TB M2 SATA SSD 2280 SATA3 6Gb Internal Solid State Drive Hard Disk for Laptop

Description

Application: Desktop
Application: Laptop
Application: Server
Application: Workstation
Application: Industrial Computer
Size: M.2 2280
Package: Yes
Nand Flash Type: TLC
Transport Protocol: AHCI
Hign-concerned Chemical: None
Style: SSD
Bus Type: PCIe 3.0×4
Origin: Mainland China
Certification: CE
Certification: FCC
Type: Internal
Controller: Option
Interface Type: M.2 2280
Cooling Fin: No
Max Sequential Write: 450
Max Sequential Read: 500
RGB: no
Choice: yes
semi_Choice: yes

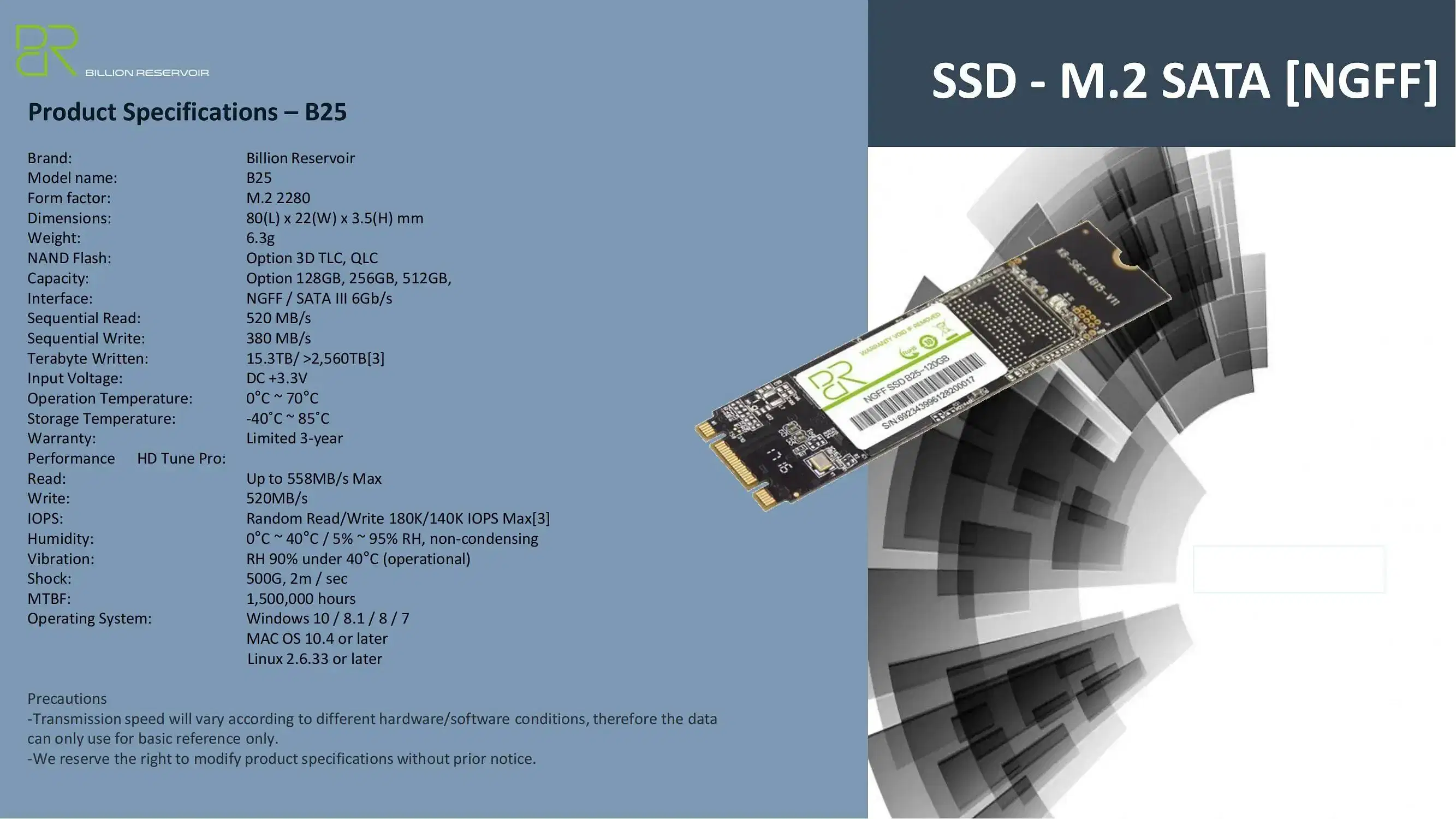

Product Specifications – B25

Brand: Billion Reservoir

Model name: B25

Form factor: M.2 2280

Dimensions: 80(L) x 22(W) x 3.5(H) mm

Weight: 6.3g

NAND Flash:Option 3D TLC, QLC

Capacity: Option128GB,256GB, 512GB, 1TB

Interface: NGFF / SATA III 6Gb/s

Sequential Read: 520 MB/s

Sequential Write: 380 MB/s

Terabyte Written: 15.3TB/ >2,560TB[3]

Input Voltage: DC +3.3V

Operation Temperature: 0°C ~ 70°C

Storage Temperature:-40˚C ~ 85˚C

Warranty: Limited 3-year

Performance HD Tune Pro:

Read: Up to 558MB/s Max

Write: 520MB/s

IOPS: Random Read/Write 180K/140K IOPS Max[3]

Humidity: 0°C ~ 40°C / 5% ~ 95% RH, non-condensing

Vibration: RH 90% under 40°C (operational)

Shock: 500G, 2m / sec

MTBF: 1,500,000 hours

Operating System:

Windows
10 / 8.1 / 8 / 7

MAC OS 10.4 or later

Linux 2.6.33 or later

Precautions
-The speed was tested by Billion Reservoir Electronics Co., Ltd. and for the
reference only.
-1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000
Bytes/1024/1024/1024 = .93GB
-Definition and conditions of TBW (Terabytes Written) are based on JEDEC
standard
-Transmission speed will vary according to different hardware/software
conditions, therefore the data can only use for basic reference.

NOTES：

–We reserve the right to modify product specifications
without prior notice.

-Different devices may have a different best
format for usage. It is recommended to format the device before use to ensure
the correctness and the integrity of the SSD.
